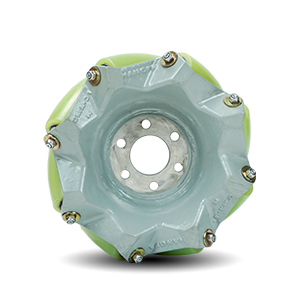

CMA series Mecanum Wheel 45°
Series Introduction
CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
Parameter Comparison
- Product
- Diameter(mm)
- Wide(mm)
- Wheels
- Bearing
- Bearing Type
- Wheel Material
- Hub Material
- Hub Surface Treatment
- Mount
- Typical Middle Hole Size(mm)
- Weight(g)
- Load(kg)
-
CMA-15
- 156.5mm
- 84mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Aluminum
- No Treatment
- Flange
- 20mm
- 2.1Kg
- 100Kg
-
CMA-20
- 203.2（8"）mm
- 75mm
- 12
- 24
- Rolling Bearing
- Polyurethane
- Aluminum
- No Treatment
- Flange
- 20mm
- 3.2Kg
- 80Kg
-
CMA-20A
- 203.2mm
- 110mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Aluminum
- No Treatment
- Flange
- 45mm
- 6Kg
- 240Kg
-
CMA-25
- 254mm
- 135mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Steel
- High Temperature Painting
- Flange
- 50mm
- 12.5Kg
- 400Kg
-
CMA-31
- 310mm
- 167mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Steel
- High Temperature Painting
- Flange
- 60mm
- 21Kg
- 650Kg
-
CMA-36
- 360mm
- 193mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Steel
- High Temperature Painting
- Flange
- 70mm
- 31Kg
- 1100Kg
-
CMA-40
- 406.4mm
- 219mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Steel
- High Temperature Painting
- Flange
- 70mm
- 53Kg
- 1600Kg
-
CMA-45
- 457.2mm
- 246mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Steel
- High Temperature Painting
- Flange
- 110mm
- 76Kg
- 1900Kg
-
CMA-50
- 508mm
- 273mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Steel
- High Temperature Painting
- Flange
- 130mm
- 100Kg
- 2300Kg
-
CMA-58
- 584.2mm
- 300mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Steel
- High Temperature Painting
- Flange
- 140mm
- 153Kg
- 3200Kg
-
CMA-66
- 660.4mm
- 349mm
- 8
- 16
- Rolling Bearing
- Polyurethane
- Steel
- High Temperature Painting
- Flange
- 170mm
- 190Kg
- 4500Kg
| Product |
CMA-15
|
CMA-20
|
CMA-20A
|
CMA-25
|
CMA-31
|
CMA-36
|
CMA-40
|
CMA-45
|
CMA-50
|
CMA-58
|
CMA-66
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter(mm) | 156.5mm | 203.2（8"）mm | 203.2mm | 254mm | 310mm | 360mm | 406.4mm | 457.2mm | 508mm | 584.2mm | 660.4mm |
| Wide(mm) | 84mm | 75mm | 110mm | 135mm | 167mm | 193mm | 219mm | 246mm | 273mm | 300mm | 349mm |
| Wheels | 8 | 12 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Bearing | 16 | 24 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Bearing Type | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing | Rolling Bearing |
| Wheel Material | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Hub Material | Aluminum | Aluminum | Aluminum | Steel | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Hub Surface Treatment | No Treatment | No Treatment | No Treatment | High Temperature Painting | High Temperature Painting | High Temperature Painting | High Temperature Painting | High Temperature Painting | High Temperature Painting | High Temperature Painting | High Temperature Painting |
| Mount | Flange | Flange | Flange | Flange | Flange | Flange | Flange | Flange | Flange | Flange | Flange |
| Typical Middle Hole Size(mm) | 20mm | 20mm | 45mm | 50mm | 60mm | 70mm | 70mm | 110mm | 130mm | 140mm | 170mm |
| Weight(g) | 2.1Kg | 3.2Kg | 6Kg | 12.5Kg | 21Kg | 31Kg | 53Kg | 76Kg | 100Kg | 153Kg | 190Kg |
| Load(kg) | 100Kg | 80Kg | 240Kg | 400Kg | 650Kg | 1100Kg | 1600Kg | 1900Kg | 2300Kg | 3200Kg | 4500Kg |
Product Briefing
Integrated molding process hub , high intensity , high stiffness
This wheel uses integrated molding process, maximizing the mechanical properties of materials integrated molding process hub , high intensity ,high stiffness, reliable and long lifetime durable.
Rolling Bearing
Compared to sliding bearings and no bearings structure ,CMA series omni wheel use rolling bearing design . (to achieve ) It’s little friction, high precision ,high reliability ,convenient fix and it can be suitable for the continuous use.
Payload between 4500KG
This series can load 4500KG maximum.
Industrial-grade quality
Design and manufacture in accordance with industry standard.
