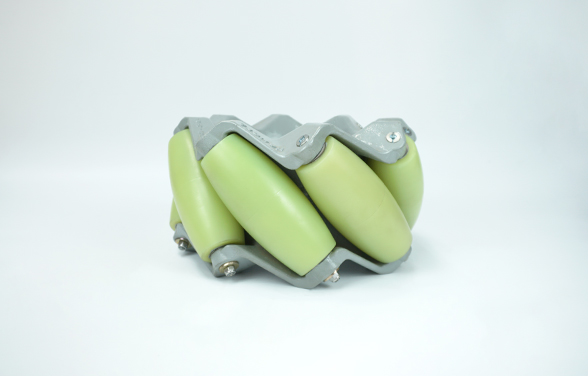

CMA-36

  • 产品图片
  • 产品图片
  • 产品图片
  • 产品图片

Product Briefing

CMA series Mecanum Wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.

Drawing Download | CMA-36CN Drawing Download | CMA-36CN

Product Characteristics

  • integrated molding process hub , high intensity ,high stiffness
  • Rolling Bearing
  • payload between 0-4500KG
  • industrial-grade quality

Exterior Dimension

产品外形尺寸

Specification Parameters

Diameter(mm) 360mm Wide(mm) 193mm
Wheels 8 Bearing 16
Bearing Type Rolling Bearing Wheel Material Polyurethane
Hub Material Steel Hub Surface Treatment High Temperature Painting
Mount Flange Typical Middle Hole Size(mm) 70mm
Weight(g) 31Kg Load(kg) 1100Kg
Diameter(mm) 360mm
Wheels 8
Bearing Type Rolling Bearing
Hub Material Steel
Mount Flange
Weight(g) 31Kg
Wide(mm) 193mm
Bearing 16
Wheel Material Polyurethane
Hub Surface Treatment High Temperature Painting
Typical Middle Hole Size(mm) 70mm
Load(kg) 1100Kg
