CMA-50

  • 产品图片
  • 产品图片
  • 产品图片
  • 产品图片

Product Briefing

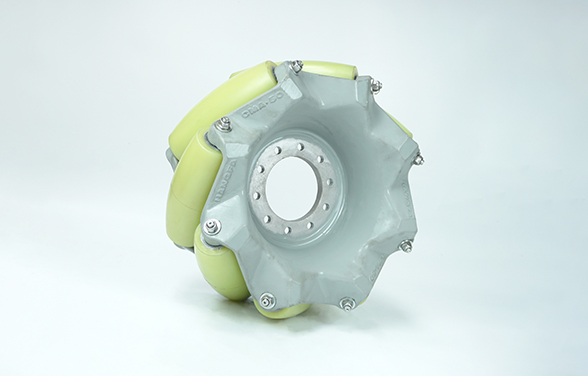

CMA series Mecanum Wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.

Drawing Download | CMA-50CN Drawing Download | CMA-50CN

Product Characteristics

  • integrated molding process hub , high intensity ,high stiffness
  • Rolling Bearing
  • payload between 0-4500KG
  • industrial-grade quality

Exterior Dimension

产品外形尺寸

Specification Parameters

Diameter(mm) 508mm Wide(mm) 273mm
Wheels 8 Bearing 16
Bearing Type Rolling Bearing Wheel Material Polyurethane
Hub Material Steel Hub Surface Treatment High Temperature Painting
Mount Flange Typical Middle Hole Size(mm) 130mm
Weight(g) 100Kg Load(kg) 2300Kg
Diameter(mm) 508mm
Wheels 8
Bearing Type Rolling Bearing
Hub Material Steel
Mount Flange
Weight(g) 100Kg
Wide(mm) 273mm
Bearing 16
Wheel Material Polyurethane
Hub Surface Treatment High Temperature Painting
Typical Middle Hole Size(mm) 130mm
Load(kg) 2300Kg
