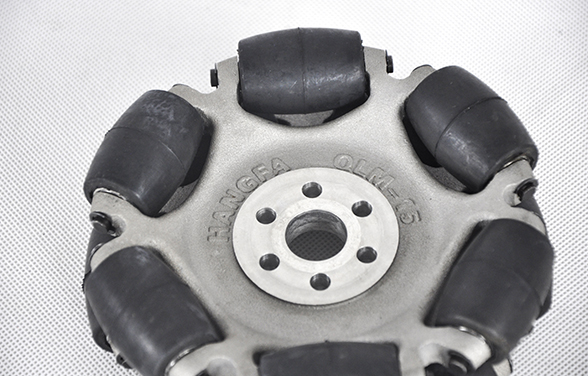

QLM-15
Product Briefing
The maximum load of QLM series omni wheel is 2000KG, and the wheel maintains a high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. The driven wheel material can be rubber or polyurethane according to customers’ requirements. QLM series omni wheel use ball bearing design with good performance in stability ,quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
Product Characteristics
- integrated molding process hub
- Rolling Bearing
- payload between 0-2000KG
- industrial-grade quality
- high intensity ,high stiffness
Exterior Dimension
Specification Parameters
| Diameter(mm) | 152.4（6"）mm | Wide(mm) | 56mm |
| Wheels | 12 | Bearing | 24 |
| Bearing Type | Rolling Bearing | Wheel Material | Rubber/Polyurethane |
| Hub Material | Aluminum | Hub Surface Treatment | No Treatment |
| Mount | Flange | Typical Middle Hole Size(mm) | 20mm |
| Weight(g) | 0.94Kg | Load(kg) | 50Kg |
| Diameter(mm) | 152.4（6"）mm |
| Wheels | 12 |
| Bearing Type | Rolling Bearing |
| Hub Material | Aluminum |
| Mount | Flange |
| Weight(g) | 0.94Kg |
| Wide(mm) | 56mm |
| Bearing | 24 |
| Wheel Material | Rubber/Polyurethane |
| Hub Surface Treatment | No Treatment |
| Typical Middle Hole Size(mm) | 20mm |
| Load(kg) | 50Kg |
