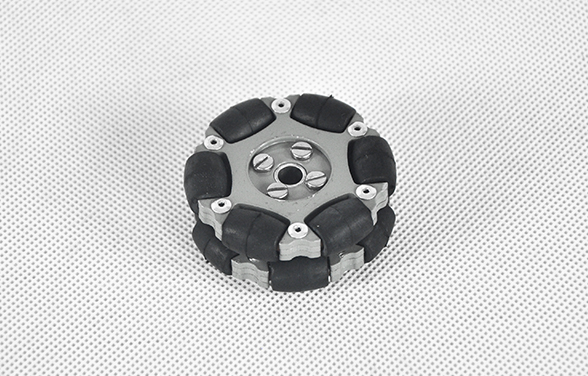

QL-05
Product Briefing
QL series omni wheel is 90-degree precise light load omni wheel . there are 2 ball bearings in every driven wheel . it is aimed to supply products with high precise and high quality to satisfy customers’ various applications . QL series omni wheel has achieved zero clearance in axial direction of driven wheel with steady improvement, particularly suitable for different small robots.
Product Characteristics
- zero clearance in axial direction of driven wheel
- Double Multi-subdivision design
- 2 bearings embedded in every driven wheel
- high quality rubber
- high-temperature painting technology
- steadly improving Ql series omni wheel
Exterior Dimension
Specification Parameters
| Diameter(mm) | 50.8(2"）mm | Wide(mm) | 21.5mm |
| Wheels | 12 | Bearing | 24 |
| Bearing Type | Rolling Bearing | Wheel Material | Rubber |
| Hub Material | Aluminum | Hub Surface Treatment | High-Temperature Painting |
| Mount | Flange/Set Screws | Typical Middle Hole Size(mm) | 4/5/6/8mm |
| Weight(g) | 70/75g | Load(kg) | 5Kg |
| Diameter(mm) | 50.8(2"）mm |
| Wheels | 12 |
| Bearing Type | Rolling Bearing |
| Hub Material | Aluminum |
| Mount | Flange/Set Screws |
| Weight(g) | 70/75g |
| Wide(mm) | 21.5mm |
| Bearing | 24 |
| Wheel Material | Rubber |
| Hub Surface Treatment | High-Temperature Painting |
| Typical Middle Hole Size(mm) | 4/5/6/8mm |
| Load(kg) | 5Kg |
