QMA-20

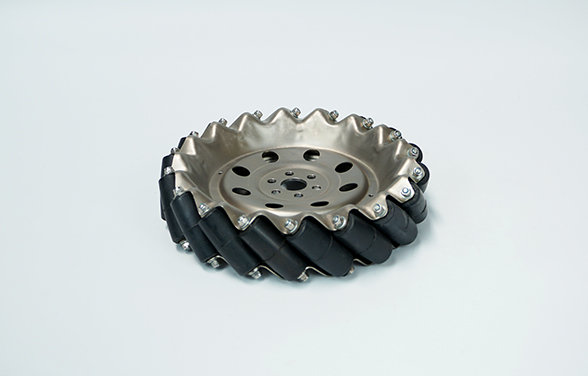

  • 产品图片
  • 产品图片
  • 产品图片
  • 产品图片

Product Briefing

  • QMA series Mecanum Wheel is 45-degree light payload omni wheel. 2 ball bearings embedded in every driven wheel, Using high precision manufacturing process , it is aimed to supply the products with high accuracy and high quality to satisfy the customers’ various applications. QMA series Mecanum Wheel has achieved small clearance in axial direction of driven wheel with steady improvement, they can be especially used on different small robots.

Drawing Download | QMA-20CN Drawing Download | QMA-20CN

Product Characteristics

  • produced by high precious technology
  • small clearance in axial direction of driven wheel
  • Multi-subdivision design
  • 2 bearings embedded in every driven wheel
  • high quality rubber
  • nickel-plated on the hub surface
  • Continuous improving QMA series omni wheel

Exterior Dimension

产品外形尺寸

Specification Parameters

Diameter(mm) 203.2(8")mm Wide(mm) 53.8mm
Wheels 18 Bearing 36
Bearing Type Rolling Bearing Wheel Material Rubber
Hub Material Steel Hub Surface Treatment Electronickelling
Mount Flange Typical Middle Hole Size(mm) 20mm
Weight(g) 1200g Load(kg) 40Kg
Diameter(mm) 203.2(8")mm
Wheels 18
Bearing Type Rolling Bearing
Hub Material Steel
Mount Flange
Weight(g) 1200g
Wide(mm) 53.8mm
Bearing 36
Wheel Material Rubber
Hub Surface Treatment Electronickelling
Typical Middle Hole Size(mm) 20mm
Load(kg) 40Kg
