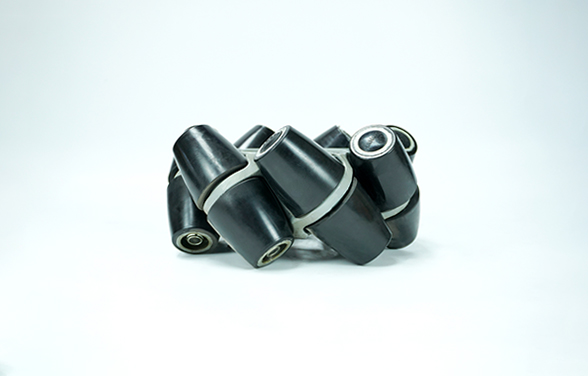

HMA-31
Product Briefing
HMA series Mecanum Wheel can supply 1300KG payload maximum. while maintaining a high accuracy .This wheel adopts driven wheels as the supporting structure.The hub use integrated molding process, maximizing the intensity, stiffness and precision. HMA series omni wheel with rolling bearings and polyurethane roller materials can adapt to various indoor and outdoor occasions .
Product Characteristics
- integrated molding process hub , high intensity ,high stiffness
- Rolling Bearing
- load capacity between 0-1300KG
- industrial-grade quality
Exterior Dimension
Specification Parameters
| Diameter(mm) | 310mm | Wide(mm) | 150mm |
| Wheels | 14 | Bearing | 28 |
| Bearing Type | Heavy duty rolling bearings | Wheel Material | Polyurethane |
| Hub Material | Aluminum | Hub Surface Treatment | High Temperature Painting |
| Mount | Flange | Typical Middle Hole Size(mm) | 45mm |
| Weight(g) | 16Kg | Load(kg) | 600Kg |
| Diameter(mm) | 310mm |
| Wheels | 14 |
| Bearing Type | Heavy duty rolling bearings |
| Hub Material | Aluminum |
| Mount | Flange |
| Weight(g) | 16Kg |
| Wide(mm) | 150mm |
| Bearing | 28 |
| Wheel Material | Polyurethane |
| Hub Surface Treatment | High Temperature Painting |
| Typical Middle Hole Size(mm) | 45mm |
| Load(kg) | 600Kg |
