RHF407 Development Board
Product Briefing
RHF407 Development Board equipped with powerful Cortex M4STM32F407 the main chip, specifically robots and industrial field application accommodates multi-channel CAN bus RS485, RS232, PWM Interface, and provides sample code that allows users to achieve a variety of application development.
Drawing Download | RHF407 Development Board
Product Characteristics
- STM32F407VET6/LQFP-100Main chip
- Communication Interface is rich in resources
- Immersion gold process for circuit board

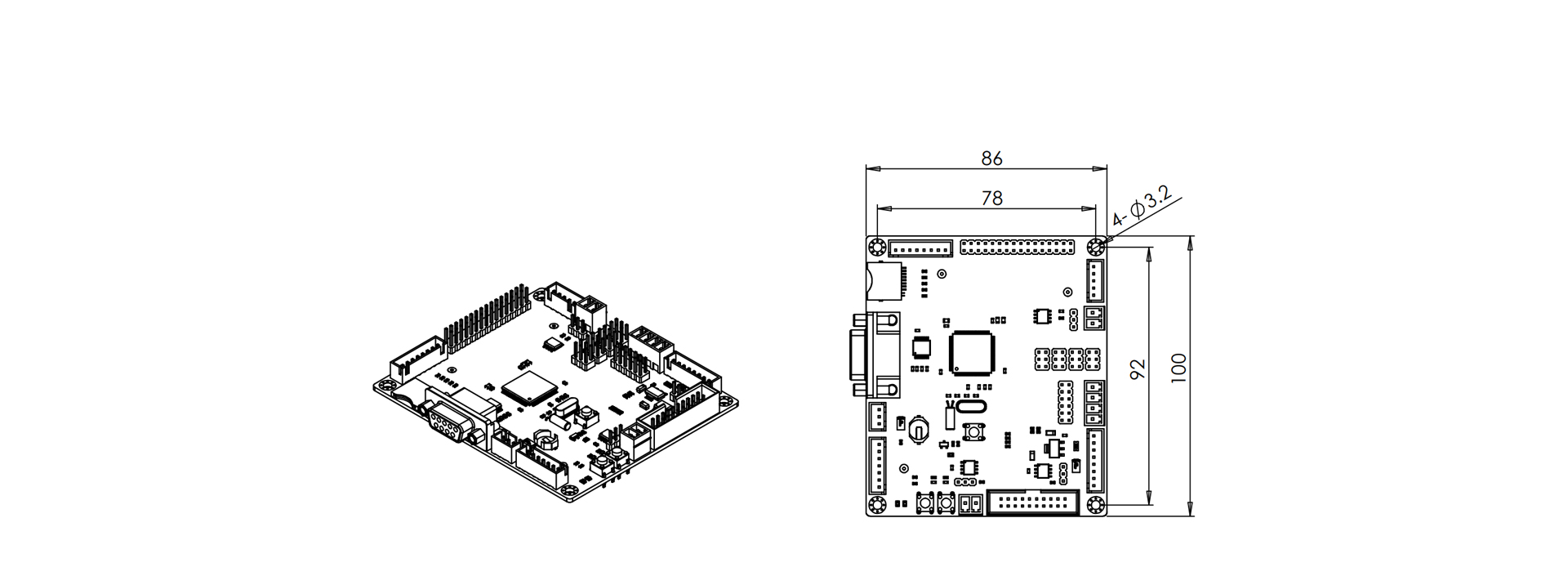

Exterior Dimension
Specification Parameters
| dimensions： | 100×86 |
| control chip： | STM32F407VET6/LQFP-100 |
| Onboard resources： | CAN×2，RS232×2，TTL×1，RS485×1，SPI×1，I2C×1，USB×1，ADC×8，DAC×2，PWM×8，LED×2，Press×2，IndependentI/O×24，ReusableI/O×29，MicroSD（TF）Card interface×1，RTCBackup battery，ReusableTFT LCDInterface×1 |
| Input voltage： | DC5V |
| Typical standby current： | 50mA |
| Main parts： | Control Board×1、CD×1 |
Typical Research and Application Areas
- Robot
- Industrial Automation
